STM

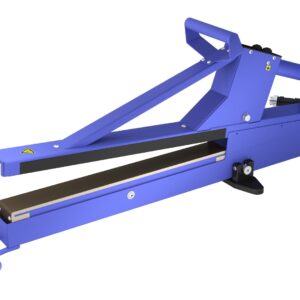

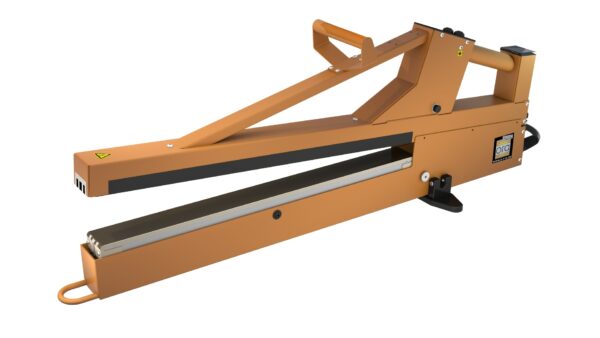

Portable triband sealing tongs with generator

Description

These portable triband welders with generator enable the safe evacuation of nuclear waste in leakproof bags, without effort. They are motorised to ensure a constant and regular pressure throughout the welding zone. The result is a hermetic seal that prevents any leakage or contamination during transport and storage of the packages..

TECHNICAL DATASTM 3S 400STM 3S 412STM 3S 416STM 3ST 400STM 3S 500STM 3S 512STM 3ST 500
Dimensions (L x W x H)70 x 28 x 15 cm70 x 28 x 15 cm70 x 28 x 15 cm70 x 28 x 15 cm85 x 33 x 18 cm85 x 33 x 18 cm85 x 33 x 18 cm
Welding capacity6 / 8 / 6 mm6 / 12 / 6 mm6 / 16 / 6 mm6 / 3+3 / 6 mm6 / 8 / 6 mm6 / 12 / 6 mm6 / 3+3 / 6 mm
Length of weld400 mm400 mm400 mm400 mm500 mm500 mm500 mm
Cuttingmanualmanualmanualautomanualmanualauto
Round bagØ 250 mmØ 250 mmØ 250 mmØ 250 mmØ 300 mmØ 300 mmØ 300 mm
Weight4,5 kg4,5 kg4,5 kg4,5 kg5,5 kg5,5 kg5,5 kg
Power cable4 m4 m4 m4 m4 m4 m4 m
Power600 W600 W600 W600 W600 W600 W600 W
TECHNICAL DATAGENERATOR
Weight10 kg
Power supply115 V or 230 V - 50/60 Hz
DiameterØ 43 cm
Power600 W
Cable length10 m
